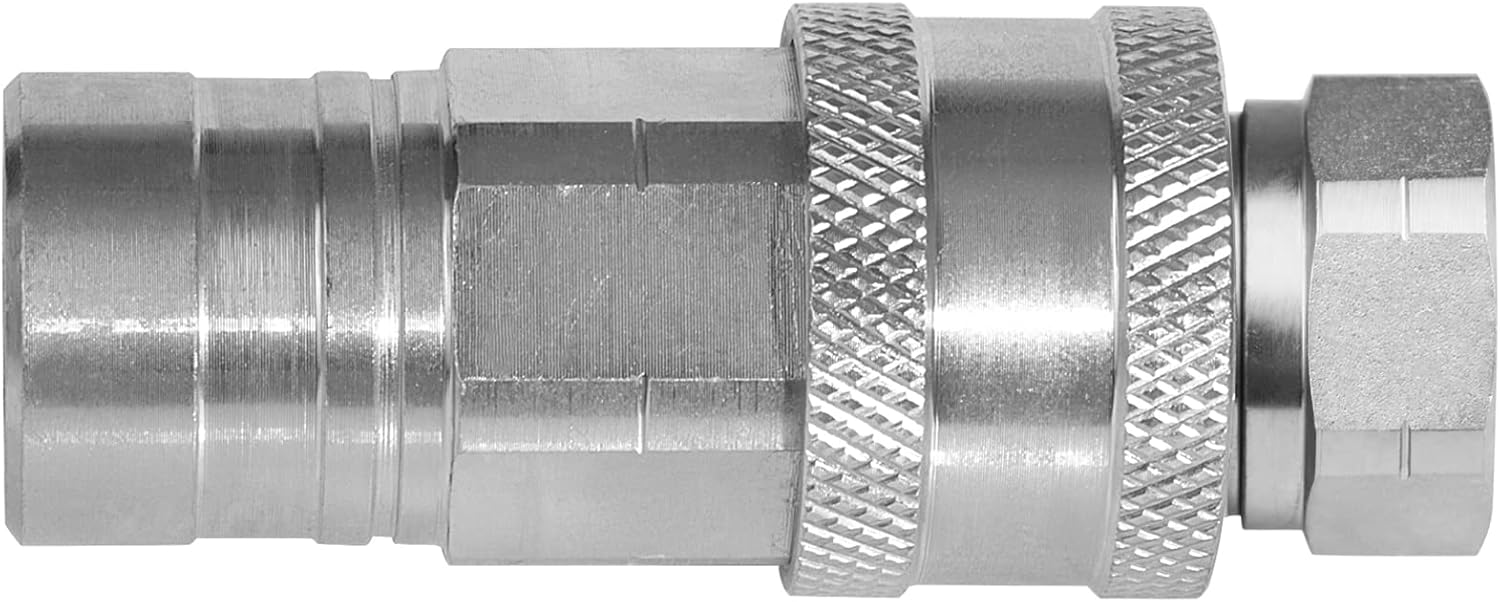

1/4" Ag ISO 5675 Hydraulic Quick Connect Pioneer Style Couplers & 1/4" NPT Thread,Interchangeable with ISO 5675 Series Poppet Seal,Ball Seat Valve Coupler Fittings

1/4” Body Ag ISO 5675 Hydraulic Quick Connect Pioneer Style Couplers 5100 PSI Rating Max Flow Rate: 6.34 GPM ISO Body Size: 1/4″ Body Port Thread Size: 1/4″ NPT Interchangeable with： Eaton/Aeroquip FD42: Male--FD42–1002–04–04 Female: FD42–1001–04–04 Stucchi IRV Series: Male--800101001 / M IR14V NPT Female--800101000 / F IR14V NPT Safeway S20 Series: Male--S41-2P/Female--S25A-2P Parker 4000 Series: Male--4010-2P/Female--4050-2P Snap-Tite 60/ 21: Male--60C4-4M/Female--60C4-4F Dixon AG Series: Male--AG2F2-PV/Female--2AGF2-PV Faster NV/NS Series: Male--NV 14 NPT M/Female--NV 14 NPT F Made by harden steel construction with zinc plating for superior corrosion resistance ,and one hand push-to-connect operation Applications:used in the agriculture, construction, logging industries etc,skid loader attachment,hydraulic tools,Agricultural implements,equipment attachments, drain lines,construction，industrial hydraulic lines.

• 1/4" Body Size Ag ISO 5675 hydraulic quick connect pioneer style couplers + 1/4" NPT Thread

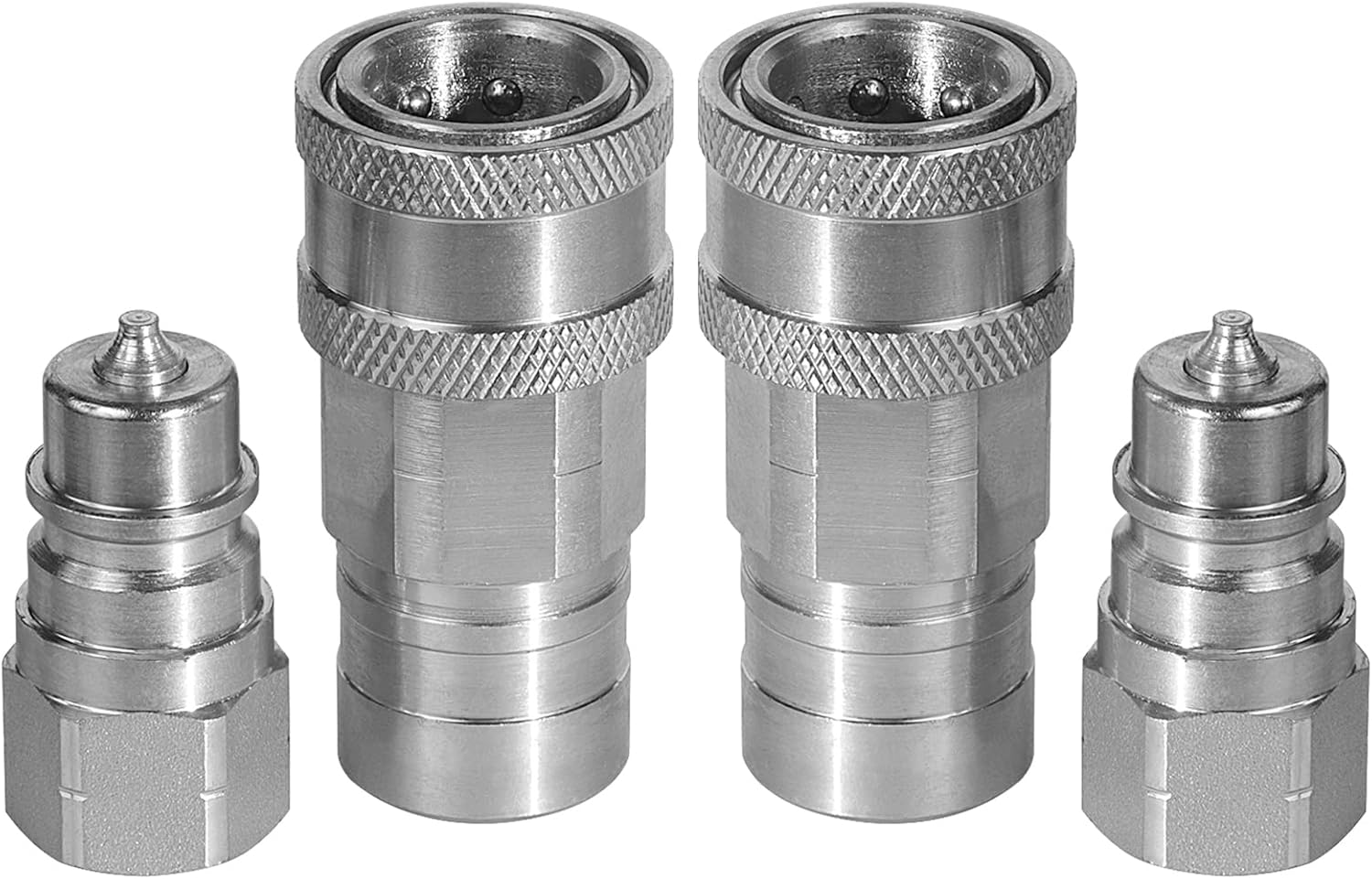

• 2 sets male& female hydraulic couplers with protector dust caps,impoved design high flow performance with 5100 PSI Rating,Max Flow Rate: 6.34 GPM
• Interchangeable with all ISO 5675 series poppet seal,ball seat valve, push-pull coupler fittings; Excellent replacement for mounting a hydraulic grapple,fixing hydraulic leak problem.
• The 1/4” hydraulic couplers are made by harden steel construction with zinc plating for superior corrosion resistance ,and one hand push-to-connect operation.
• Applications:used in the agriculture, construction, logging industries etc,skid loader attachment,hydraulic tools,Agricultural implements,equipment attachments, drain lines,construction，industrial hydraulic lines.
