Maxim WC Welded Cylinder: 2.5 Bore x 6 Stroke, 3000 PSI, 1.5" Rod Diameter with SAE #8 Port Size, Retracted: 16.25 and Extended Length: 22.25, 1" Pin Dia., 288414
4.6 (77 items)
Limited Time Sale$127.90 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220353686 | Release Date | 2026/05/03 | List Price | $85.27 | Model Number | 220353686 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

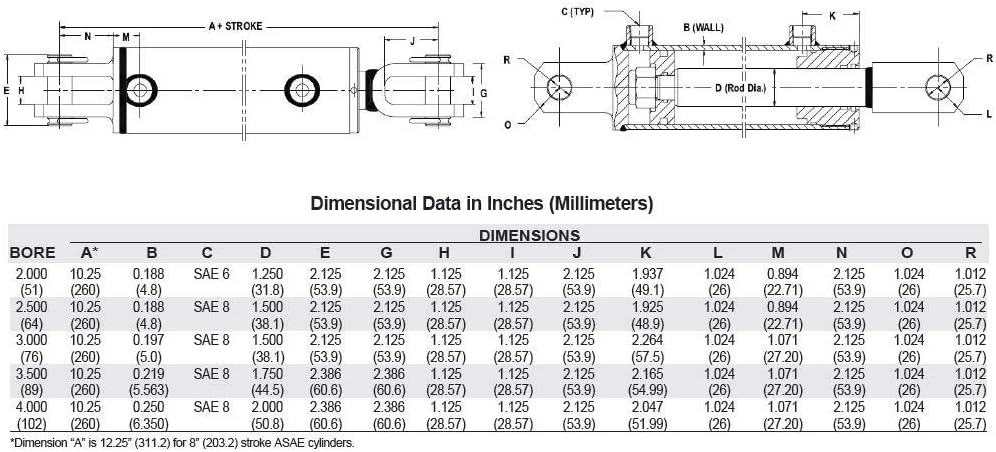

The Maximª WC 3000 PSI welded cylinder is clevis mounted, and exceeds the highest standards. These Cylinders are designed for demanding applications and are built to ensure Maximum reliability and performance. Painted black. Intended Use: Double-acting applications ¥ Piston: Ductile iron ASTM A536 65-45-12 for excellent life ¥ Piston Lock Nut : Grade 8, high tensile zinc-plated ¥ Gland: Ductile iron ASTM A536 65-45-12 ¥ Tube: High tensile cold drawn tube, precision honed for extended seal life ¥ Tube seal: Nitrile O-ring with Polytemp hytrel back-up ¥ Rod: High tensile ground & polished hard chrome plated rod ¥ Rod seal: Std PolyPak with B lip design (Polyurethane U-cup with Nitrile O-ring expander) ¥ Wiper: Polyurethane ¥ End Mounts: Cast female clevises with pins and clips included ¥ Pin and Pin clip: High tensile zinc-plated steel ¥ Piston ID Seal: O-ring ¥ Piston OD seal: Hallite 755 piston seal ¥ Ports: SAE O-rings 2.5 Bore, 6 Stroke, 1.5 Rod Dia., 16.25 Retracted, 22.25 Extended, 14720 Column Load, SAE 8 Port Size, 1 Pin Dia.
- 2.5 Bore, 6 Stroke, 1.5 Rod Dia., 16.25 Retract, 22.25 Extend, 14720 Load, SAE 8 Ports, 1 Pin
- 2.5 Bore x 6 Stroke
- 1.5 Rod Dia.
- Bailey Part Number: 288414
| Item Weight | 22 pounds |
|---|---|
| Manufacturer | Bailey Hydraulics |
